GitHub

Overview

Visualize and analyze GitHub resources, including repositories, packages, workflow jobs, and SBOM documents. Gain insights into resource utilization, governance, and security posture. Generate and monitor SBOMs, identify vulnerabilities in repositories and packages, and improve overall visibility and compliance within your GitHub environment.

Configurations

Configuration	Description
Blueprint Account Name	A human-readable name for your account that will be used to identify this account across the application.
Github Auth Token	The GitHub personal access token used for authentication. Ensure that the token has the necessary scopes for repository and organization access. Details in the Permissions section.
Org Name	The name of the GitHub organization to be monitored.
Data Crawl Frequency	The frequency at which Kscope will scan your repositories for changes and updates.
Resource Selection	Selectively include or exclude certain resources. See example below.

Permissions

The GitHub blueprint requires a Personal access token (classic) which you can create by clicking here. Please ensure that you select "No expiration" otherwise the blueprint will start failing when the token expires.

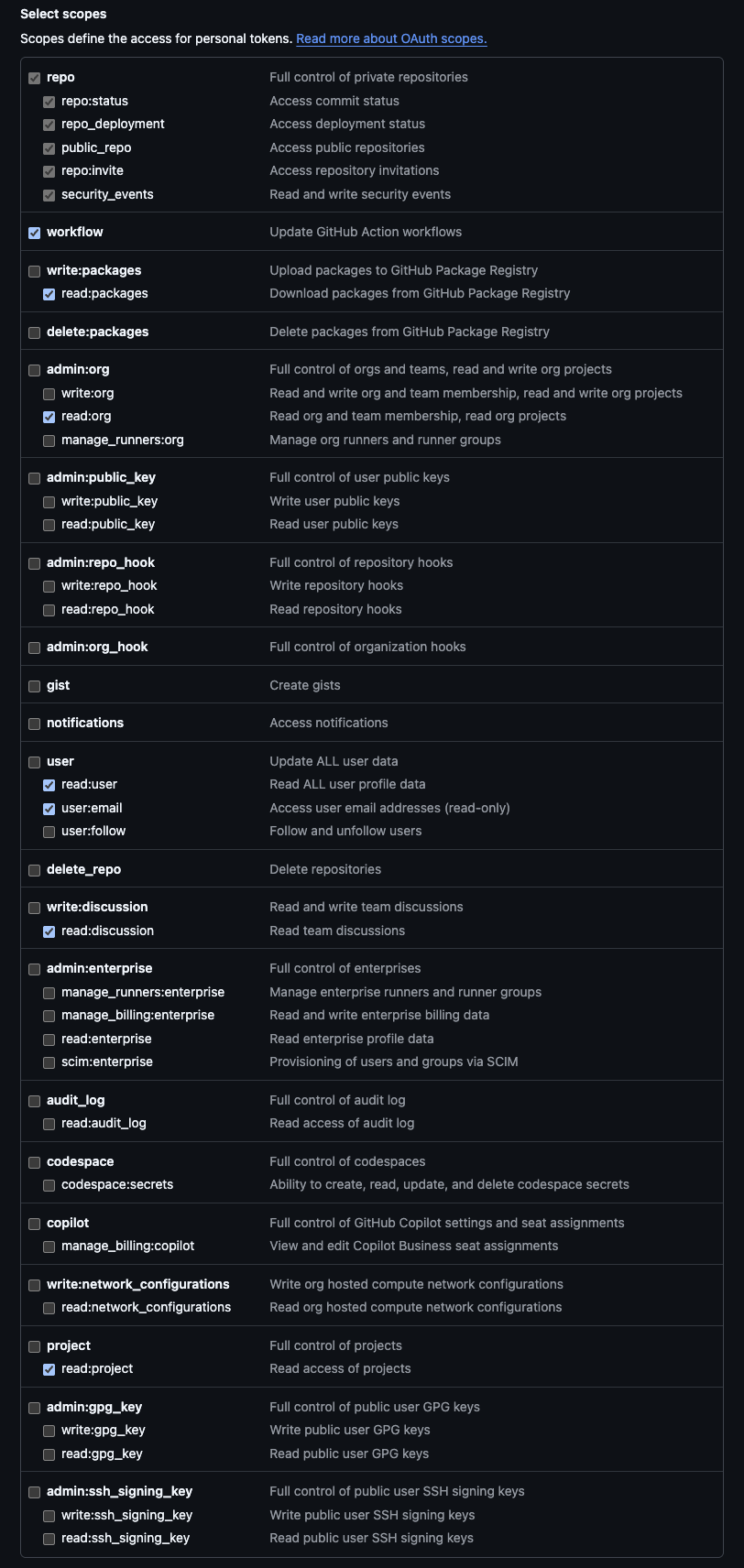

The screenshot shows all the scopes that are needed and are selected by default.

The required scopes and why they are needed are listed below.

Generate SBOM for containers and artifacts

• read:packages

Get organization level information

• read:org
• read:user
• user:email
• read:project
• read:discussion

Access code repositories and their actions to generate SBOM

• repo
• workflow

For more details on the Github permissions, you can refer to the following documentation: Access permissions on GitHub documentation

Event Configuration

Overview

To enable real-time event processing for GitHub, you need to configure webhooks that forward GitHub events to the Kscope platform.

GitHub Webhook Configuration

Configure the webhook in your GitHub organization settings:

Accessing the Blueprint Account Configuration Form:

To access the Blueprint Account Configuration form in Kscope:

1. Navigate to the Kscope platform
2. Go to Blueprints → GitHub
3. Either:
   • Click the edit icon for an existing GitHub blueprint account, or
   • Click Add account on the top right part of the navigation bar to create a new account
4. The account configuration form will open

Values that you will need to configure the Github webhook:

1. Payload URL - This should be copied from the Blueprint Account Configuration form under the Events Endpoint section of the form.
2. Secret - This should be obtained by clicking Generate API Key button in the Blueprint Account Configuration form

Configuration Steps:

1. Navigate to your GitHub organization settings
2. Go to Webhooks → Add webhook
3. Enter the Payload URL as copied from the Blueprint Account Configuration form
4. Set Content type to application/json
5. Enter Secret as copied from the Blueprint Account Configuration form
6. Select the events you want to receive (or choose "Send me everything")
7. Ensure Active is checked
8. Click Add webhook

Supported Events:

The GitHub webhook should be configured to send the following event types:

• commit_comment
• create
• delete
• issue_comment
• issues
• member
• pull_request
• pull_request_review
• pull_request_review_comment
• push

For more information on GitHub webhooks, refer to the GitHub Webhooks documentation.

SBOM Generation

The GitHub blueprint includes SBOM (Software Bill of Materials) generation for both repositories and container images stored in GitHub Container Registry (GHCR). This provides comprehensive vulnerability scanning and dependency analysis for both source code and containerized applications.

For information about supported languages and package managers for SBOM generation, see: SBOM

Schema Model

Resources	Source Entity	Normalized Entity	Description
GitHub Organization	github.organization	Organization	A GitHub organization.
GitHub Repository	github.repository	Repository	A GitHub repository.
GitHub Branch	github.Branch	Branch	A branch within a GitHub repository.
GitHub User	github.organization.User	User	A user associated with a GitHub organization.
GitHub Package	github.ghcr.Package	Package	A package hosted in GitHub Container Registry.
GitHub Workflow	github.repository.Workflow	Workflow	A workflow defined in a GitHub repository.
GitHub Workflow Run	github.repository.WorkflowRun	WorkflowRun	A run of a GitHub repository workflow. Note: Only last 100 runs in the last 30 days window are crawled
GitHub Workflow Job	github.repository.WorkflowJob	WorkflowJob	A job executed within a workflow run.
GitHub Contributor	github.repository.Contributor	Contributor	A contributor to a GitHub repository.
GitHub Task Step	github.repository.TaskStep	TaskStep	A task step in a workflow or pipeline.
SCA SBOM Package	sca.sbom.Package	Package	A package detected in SBOM analysis.
SCA SBOM Document	sca.sbom.Document	Document	An SBOM document for software components.
Github Pull Request	github.repository.PullRequest	Pull Request	A Pull Request in a GitHub Repository
SCA SBOM Vulnerable Package	sca.sbom.VulnerabilityPackage	Package	A vulnerable package detected by SBOM Scan.
SCA SBOM Vulnerability Match	sca.sbom.VulnerabilityMatch	Match	A match indicating vulnerability found by SBOM Scan.
SCA SBOM Vulnerability	sca.sbom.Vulnerability	Vulnerability	A vulnerability reported by SBOM Scan.
GitHub Timestamp	github.organization.Timestamp	Timestamp	A timestamp associated with GitHub data.
GitHub Plan	github.organization.Plan	Plan	A subscription plan for a GitHub organization.
GitHub Package Version	github.ghcr.PackageVersion	PackageVersion	A version of a package in GitHub Container Registry.
Terraform Vulnerability	sca.sbom.TerraformVulnerability	Vulnerability	Vulnerabilities detected in Terraform modules.
Terraform Module	sca.sbom.TerraformModule	Module	A Terraform module used in a configuration.
SCA Rule	sca.sbom.Rule	Rule	A rule or policy in SBOM analysis.
GitHub Model	models	Model	Data models used in GitHub analysis.
DefSec Terraform Vulnerability	defsec	Vulnerability	A Terraform vulnerability detected by DefSec.
Findings of gitleak	sca.secretscan.Finding	Vulnerability	A secret detected by gitleak
scan.

Events

Event	Description
CommitCommentEvent	Tracks discussions or feedback on specific commits, enabling collaboration on code changes.
CreateEvent	Logs the creation of repositories, branches, or tags, signaling new development milestones.
DeleteEvent	Captures the removal of branches or tags, reflecting cleanup or restructuring efforts.
IssueCommentEvent	Facilitates discussions by logging comments on issues or pull requests, enhancing issue tracking.
IssuesEvent	Monitors actions like creation, closure, or reopening of issues to track progress and resolution.
MemberEvent	Logs changes in repository collaborators, supporting access management and team coordination.
PullRequestEvent	Tracks pull request activities, such as creation, updates, or merging, for managing code reviews.
PullRequestReviewCommentEvent	Records feedback on specific lines of code in pull request reviews, ensuring detailed collaboration.
PullRequestReviewEvent	Logs approval, request for changes, or other review actions to facilitate code quality checks.
PushEvent	Tracks code pushes to repository branches, capturing details of commits for version control.
